D7 Condenser Management PCB ...Read more

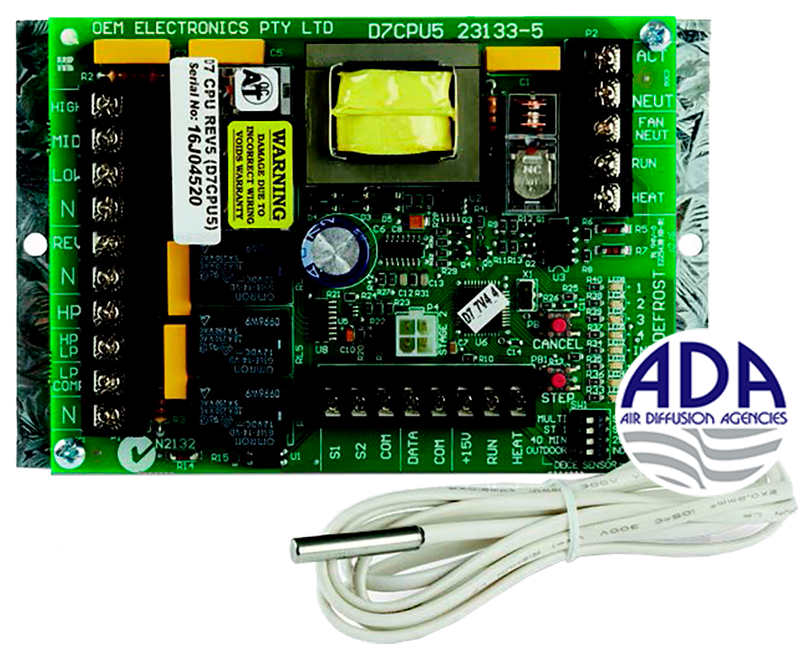

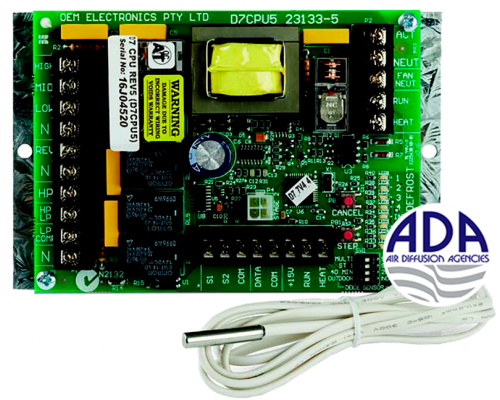

D7 Condenser Management PCB

The D7 is a complete Condenser Management solution for Air-cooled Heat pumps and is designed to interface with Leasam Controls and most other brands of Thermostats. The D7 minimises wiring by providing all the 240V connections to the HP / LP Safeties, Compressor Contactor, 4Way Valve, Condenser Fan and Control Fuse. Modern Retrofit Module.

Features

  • Stand Alone Controller for 24V or 240V Thermostat
  • Standard Wiring and Mounting Plate for Ease of Installation
  • Single Speed or 3 Speed Outdoor Fan for Pressure Control
  • Defrost Control Features, Hold Off Time, Confirmation Time
  • Terminates Defrost on Time and / or Temperature
  • Residual Water Removal and Indoor Coil Pre-Heat Cycle
  • Compressor Anti-Cycle Protection
  • High / Low Pressure Safety Trip Protection
  • System Lockout After 3 Safety Trips within 45 mins
  • Service Features
